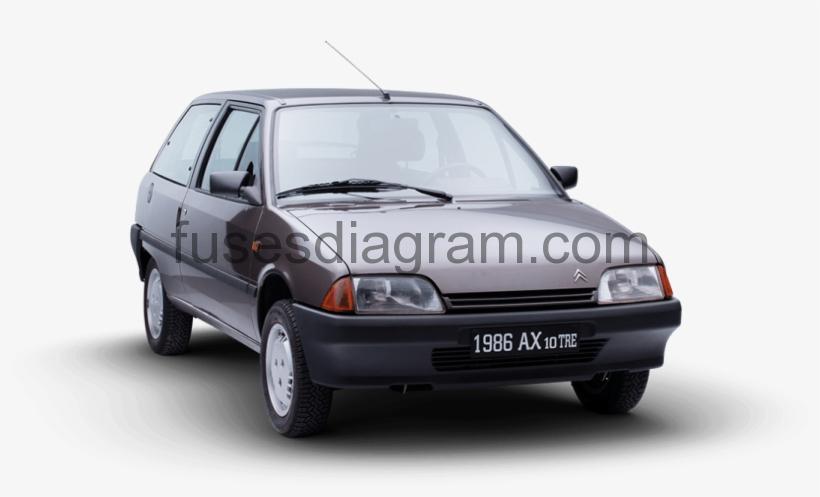

For Citroen AX 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996 model year.
Cigarette lighter fuse – Fuse box in passenger compartment – Fuse №12/5A |
Fuse box in passeger compartment.
fuse box location.
fuse box diagram.
Assignment of the fuses
| Fuses | Amps | Circuits Protected |
|---|---|---|
| 1 | 30A | Heater blower Air-conditioning switches |
| 2 | 30A | Wash/wipe system Instrument panel Radio Lights on Brake lights Intermittent rear wiper 4WD switch |
| 3 | 30A | Direction indicators Cooling fan relay Heated rear windscreen switch Power window relay Induction heating |
| 4 | 25A | Central locking |
| 5 | 30A | Heated rear windscreen |
| 6 | 10A | Hazard warning lights |
| 7 | 10A | Reversing light(s) Instrument panel Instrument lighting Coolant level ABS Dim-dip |
| 8 | 20A | Interior light(s) Radio Clock Rear wiper Luggage compartment light(s) |
| 9 | 30A | Power windows |
| 10 | 20A | Horn |
| 11 | 5A | Rear fog light(s) |
| 12 | 5A | Right sidelight Right tail light Illumination, control switches Illumination, cigarette lighter Ashtray illumination Illumination, radio |
| 13 | 5A | Left sidelight Left tail light Number plate light(s) Dashboard illumination, sidelights |
Fuse box in engine compartment.
| Fuses | Amps | Circuits Protected |
|---|---|---|
| 1 | 30A | Cooling fan |
| 2 | 10A | Front fog lights |
| 3 | 30A | Air-conditioning relay |
| 4 | ||
| 5 | 15A | ABS Or ESP control unit |
| 6 | ABS Or ESP control unit |
