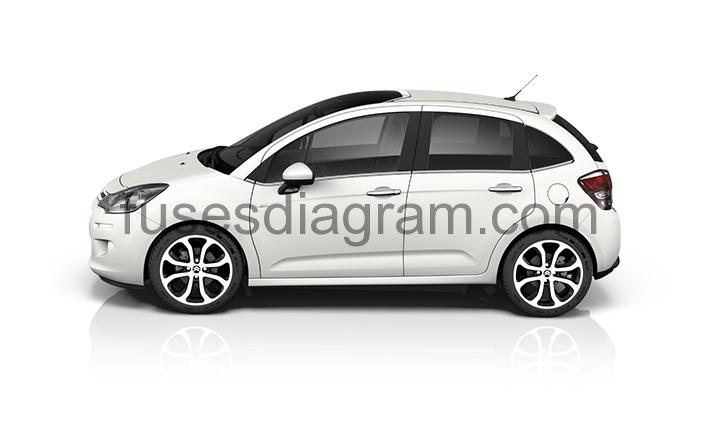

For Citroen C3 MK2 (A51) 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016 model year.
Cigarette lighter fuse – Fuse box in passenger compartment – Fuse F9/30A |
MENU
Fuse box in engine compartment.
Fuse box in passenger compartment.
Fuse box in engine compartment.
fuse box location.
The fusebox is located in the engine compartment near the battery (left-hand side).
fuse box diagram.
Assignment of the fuses.
| Fuses | Amps | Circuits Protected |
|---|---|---|
| 1 | 20A | Multifunction module or not used |
| 2 | 15A | Horn |
| 3 | 10A | Front and rear washer pumps |
| 4 | 20A | Daytime running lamps, LED daytime running lamps or Not used |
| 5 | 15A | Diesel heater (Diesel), particle filter additive pump (Diesel), air flow sensor (Diesel), fuel pump (1.1i and 1.4i), blow-by heater and electrovalves (VTi). |
| 6 | 10A | ABS/ESP relay(s) |
| 7 | 10A | Gear lever blocking control relay Transmission Transmission control unit Power steering |
| 8 | 20A | Starter motor |
| 9 | 10A | Relay 3 protection switch unit |
| 10 | 30A | Engine control unit Canister purge solenoid Fuel heater (Diesel), blow-by heater (1.1i, 1.4i and Diesel), fuel pump (VTi), injectors and ignition coils (petrol), electronic thermostat and canister purge electrovalve (1.1i and 1.4i). |
| 11 | 40A | Air-conditioning blower |
| 12 | 30A | Windscreen wiper |
| 13 | 40A | Fuses on the BSI (Intelligent power distribution module) |
| 14 | 30A | Valvetronic supply (VTi) or Not used |
| 15 | 10A | Right-hand main beam headlamps or Not used |
| 16 | 10A | Left-hand main beam headlamps or Not used |
| 17 | 15A | Left-hand dipped beam headlamps or Not used |
| 18 | 15A | Right-hand dipped beam headlamps or Not used |
| 19 | 15A | Oxygen sensors and electrovalves (VTi), electrovalves (Diesel), EGR electrovalve (Diesel) or Not used |
| 20 | 10A | Pumps, electronic thermostat (VTi), water in fuel sensor (Diesel) or Not used |
| 21 | 10A | Fuse box in passenger compartment or (5A) Fan assembly control supply, ABS/ESP |
| MF1 | 60A | Cooling fan |
| MF2 | 30-A | ESP |
| MF3 | 30A | ESP |
| MF4 | 60A | Fuses on the BSI (Intelligent power distribution module) |
| MF5 | 60A | Fuses on the BSI (Intelligent power distribution module) |
| MF6 | Not used | |
| MF7 | 80A | Dashboard fusebox |
| MF8 | Not used |
Fuse box in passenger compartment.
fuse box location.
The fusebox is located in the lower dashboard (left-hand side). For access to them: unclip the cover by pulling on the side, remove the cover completely, remove the pliers.
legend (type 1).
| Fuse N° | Rating | Functions |
|---|---|---|
| F1 | – | Not used. |
| F2 | – | Not used. |
| F3 | 5 A | Airbags and pretensioners control unit. |
| F4 | 10 A | Air conditioning, clutch switch, electrochrome mirror, particle filter pump (Diesel), diagnostic socket, airflow sensor (Diesel). |
| F5 | 30 A | Electric windows panel, passenger’s electric window control, front electric window motor. |
| F6 | 30 A | Rear electric windows motors and driver’s electric window motor. |
| F7 | 5 A | Courtesy lamp, glove box lighting, side reading lamps. |
| F8 | 20 A | Multifunction screen, audio system, navigation and audio system, instrument panel with clock, alarm control unit, alarm siren, audio system (after-market), 12 V socket, portable navigation carrier power supply. |
| F9 | 30 A | Multifunction screen, audio system, navigation and audio system, instrument panel with clock, alarm control unit, alarm siren, audio system (after-market), 12 V socket, portable navigation carrier power supply, locking. Cigarette lighter fuse |
| F10 | 15 A | Steering mounted controls. |
| F11 | 15 A | Ignition, diagnostic socket, automatic gearbox control unit. |
| F12 | 15 A | Rain / sunshine sensor, trailer relay unit, driving school module. |
| F13 | 5 A | Main stop switch, engine relay unit, gear lever for electronic gearbox. |
| F14 | 15 A | Parking sensors control unit, airbag control unit, instrument panel, digital air conditioning, USB Box, HiFi amplifier, reversing camera. |
| F15 | 30 A | Locking. |
| F16 | – | Not used. |
| F17 | 40 A | Rear screen and door mirrors demisting/defrosting. |
| SH | – | PARC shunt. |
legend (type 2).
| Fuses | Amps | Circuits Protected |
|---|---|---|
| 1 | Not used | |
| 3 | 5A | Airbags |
| 4 | 10A | Diagnostic socket Clutch pedal position sensor Electrochromatic rear-view mirror |
| 5 | 30A | Front power windows One-touch power windows Driver’s door control unit |
| 6 | Not used | |
| 7 | 5A | Glovebox lights Map reading light(s) Vanity light |
| 8 | 20A | Radio |
| 9 | 30A | 12V socket/Cigarette lighter fuse |
| 10 | 15 | Upper steering column |
| 11 | 15A | Diagnostic socket Security alarm Automatic gearbox |
| 12 | 15A | Rain and light sensor Trailer towing module |
| 13 | 5A | Junction box Fuse box in engine compartment |
| 14 | 15A | USB Handsfree kit |
| 15 | Not used | |
| 17 | 40A | Heated rear windscreen |
| 16 | Shunt |
Additional fuse in passenger compartment.
legend.
| Fuse N° | Rating | Functions |
|---|---|---|
| 36 | 5 A | Trailer relay unit. |
| 37 | – | Not used. |
| 38 | 20 A | Hi-Fi amplifier. |
| 39 | 20 A | Heated seats. |
| 40 | 40 A | Trailer relay unit. |
