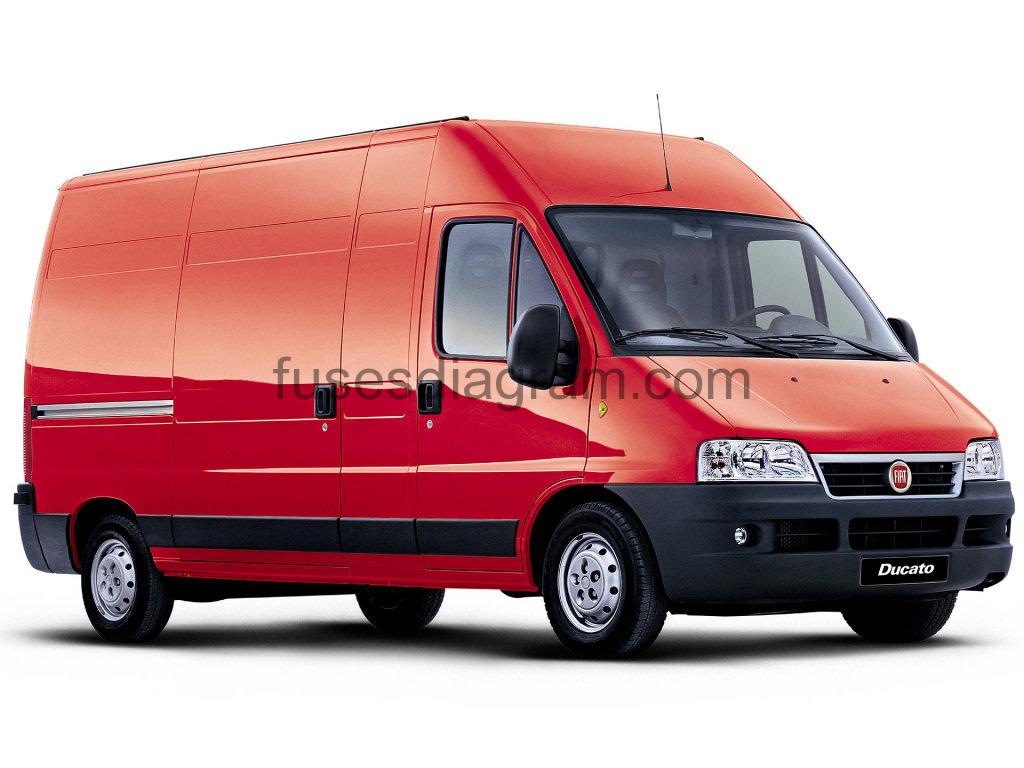

For Fiat Ducato (244) 2002, 2003, 2004, 2005, 2006 model year.
| Cigarette lighter fuse – fuse box in passenger compartment – Fuse F11/15A |
MENU
Fuse box №1 in passenger compartment.
Fuse box №2 in passenger compartment.
Fuse box in engine compartment.
Relay box in engine compartment.
Additional relays in engine compartment
Fuse box №1 in passenger compartment.
fuse box location.
The fuse box is located on the left side of the dashboard. Unscrew the two screws A to access the fuses.
fuse box diagram.
Assignment of the fuses.
Fuse 1a
Parking assistance
Reversing lights
Accessory relay
Front fog light relay
Additional heater relay
Washer pump relay
Wiper relay
10.0 A
Fuse 1b
Automatic transmission
Parking assistance
Reversing lights
Accessory relay
Front fog light relay
Additional heater relay
Washer pump relay
Wiper relay
10.0 A
Fuse 2
Headlight washers
15.0 A
Fuse 3
Rear fog lights
7.5 A
Fuse 4
Audio system
15.0 A
Fuse 5
Front right-hand side light – Rear right-hand side light
Fuse 6
Front left-hand side light – Rear left-hand side light
Fuse 7
Left headlight
Right tail light
5.0 A
Fuse 8
Right headlight
Left tail light
5.0 A
Fuse 9
Sidelights
Number plate light(s)
Instrument lighting
5.0 A
Fuse 10
Air conditioning
30.0 A
Fuse 11
Cigarette lighter
12V socket
15.0 A
Fuse 12
Cigarette lighter
12V socket
20.0 A
Fuse 13
No information is available
Fuse 14
Wash/wipe system
15.0 A
Fuse 15
No information is available
Fuse 16
No information is available
Fuse 17
Direction indicators
Hazard warning lights
Instrument panel
10.0 A
Fuse 18
Diagnostic connector
Courtesy light(s)
10.0 A
Fuse 19
Sidelights
Number plate light(s)
Direction indicators
Hazard warning lights
Rear fog lights
Instrument lighting
10.0 A
Fuse 20
Brake lights
7.5 A
Fuse 21
Electric mirrors
Refrigerator box
Telephone
Tachograph
Cruise control
Security alarm system
7.5 A
Fuse 22
Airbags
7.5 A
Fuse 23
ABS
Or
ESP control unit
7.5 A
Fuse 24
Front power windows
Central locking
7.5 A
Fuse 25
Audio system
7.5 A
Fuse 26
Additional control panel
10.0 A
Relay R1
Headlight washer relay
Relay R2
Accessory relay
Relay R3
Accessory relay
Fuse box №2 in passenger compartment.
The fuse box is located on the right side of the dashboard. Unscrew the two screws B to access.
fuse box diagram.
legend.
Fuse 1
Not used
Fuse 2
Additional heater
15.0 A
Fuse 3
Additional heater
20.0 A
Fuse 4
Supplementary air conditioning
30.0 A
Fuse 5
Telephone
Tachograph
Security alarm system
10.0 A
Fuse 6
Front power windows
20.0 A
Fuse 7
No information is available
Fuse 8a
Rear 12V socket
20.0 A
Fuse 8b
Side 12V socket
20.0 A
Fuse 9
No information is available
Fuse 10
Heated rear windscreen, left side
15.0 A
Fuse 11
Heated mirrors
10.0 A
Fuse 12
Heated rear windscreen, right side
15.0 A
Fuse 13
No information is available
Fuse 14
No information is available
Fuse 15
Front power windows
20.0 A
Fuse 16
Central locking
20.0 A
Fuse 17
Security alarm system
10.0 A
Fuse 18
No information is available
Fuse 19
Additional heater
30.0 A
Fuse 20
Refrigerator box relay
Refrigerator box
15.0 A
Fuse 21
No information is available
Fuse 22
No information is available
Fuse 23
No information is available
Fuse 24
No information is available
Fuse 25
No information is available
Fuse 26
No information is available
Relay R1
Additional heater relay
Relay R2
Accessory relay
Relay R3
Demister relay
Heated mirror relay
Relay R4
Additional heater relay
Relay R5
Refrigerator box relay
Relay R6
Not used
Fuse box in engine compartment.
To gain access, remove the protective cover A, then loosen the screw B, release the latch C and remove the cover D.
fuse box diagram.
legend.
Fuse 1
Headlight washers
70.0 A
Fuse 2
Engine control unit, diesel
50.0 A
Fuse 3
Air conditioning
Heater system
40.0 A
Fuse 4
Cooling fan 1 relay
40.0 A
Fuse 5a
Cooling fan 2 relay
40.0 A
Fuse 5b
Cooling fan 2 relay
60.0 A
Fuse 6
ABS
Or
ESP control unit
50.0 A
Fuse 7
Washer pump relay
Wiper relay
15.0 A
Fuse 8a
Ignition switch
30.0 A
Fuse 8b
Ignition switch
10.0 A
Fuse 9
Automatic transmission
15.0 A
Fuse 10
Right dipped beam
10.0 A
Fuse 11
Horns
Horn relay
15.0 A
Fuse 12
Left dipped beam
Headlight levelling
Left
10.0 A
Fuse 13
Compressor clutch relay
7.5 A
Fuse 14
Immobiliser
Ignition switch
7.5 A
Fuse 15
Front fog light relay
Front fog lights
15.0 A
Fuse 16
Main beam relay
Main beam
15.0 A
Fuse 17
Automatic transmission
10.0 A
Fuse 18
Immobiliser
Compressor
Engine control unit, diesel
7.5 A
Fuse 19
Engine management relay
Engine control unit, diesel
15.0 A
Fuse 20
No information is available
Fuse 21
Engine control unit, diesel
5.0 A
Fuse 22
Speedometer
Engine control unit, diesel
10.0 A
Fuse 23
Engine control unit, diesel
20.0 A
Fuse 24
Heater
Relay R1
Cooling fan 2 relay
Relay R2
Dipped beam relay
Relay R3
Washer pump relay
Wiper relay
Relay R4
Horn relay
Relay R5
Main beam relay
Relay R6
Front fog light relay
Relay R7
Compressor clutch relay
Relay R8
Cooling fan 1 relay
Relay R9
Engine management relay
Relay R10
Engine management relay
Compressor clutch relay
Relay R11a
Automatic transmission relay
or not used
Relay R11b
Not used
Relay R12
Engine management relay
Relay box in engine compartment.
Relay R1 – Blower relay
Relay R2 – Blower, low-speed relay
Relay R3 – Blower, high-speed relay
Additional relays in engine compartment.
Relay R1 – Inlet manifold heater relay
Relay R2 – Additional relay, heater control
Relay R3 – Cooling fan relay
