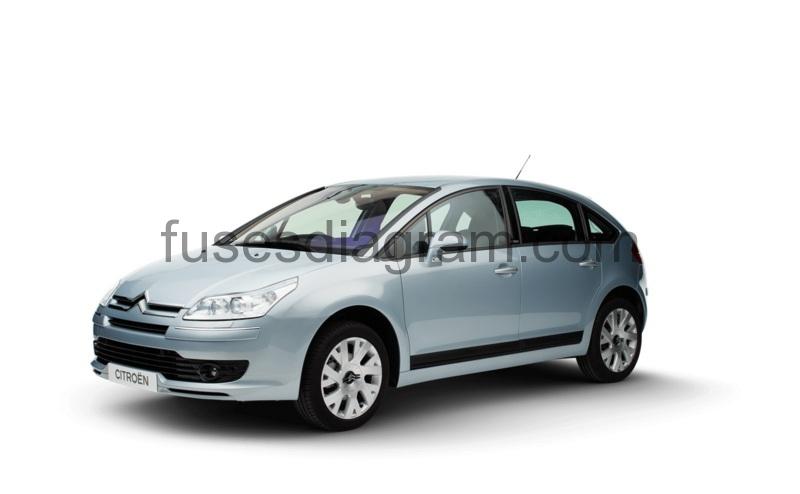

For Citroen C4 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011 model year.
Cigarette lighter fuse – Fuse box in passenger compartment – Fuse F9/30A |
MENU
Fuse box in passenger compartment.
Additional fuse box below the dashboard.
Fuse box in engine compartment.
Additional fuse box in engine compartment.
Fuse box in passenger compartment.
fuse box location.
To access the fuses below the dashboard, pull back the access cover, undo the screws a quarter turn and tilt the whole unit.
fuse box diagram.
Assignment of the fuses.
| 16 | Bridge |
| 1 | (15A) Rear screen wiper |
| 2 | (30A) Central locking |
| 3 | (10A) Supplementary restraint system (SRS) control module |
| 4 | (10A) Auto-dimming rearview mirror, brake pedal position (BPP) sensor, clutch pedal position (CPP) switch, data link connector (DLC), electronic stability program (ESP), engine coolant ‘low’ sensor, engine speed (RPM) sensor, exhaust particulate filter |
| 5 | (30A) Electric windows – front |
| 6 | (30A) Electric windows – rear |
| 7 | (5A) Interior lamps |
| 8 | (20A) Instrument panel, audio system, navigation system, alarm system – if fitted, digital multifunction display |
| 9 | (30A) Accessories connector, cigarette lighter |
| 10 | (15A) Automatic transmission, tyre pressure monitoring system, stop lamps switch |
| 11 | (15A) Ignition switch, data link connector (DLC), exhaust particulate filter pressure differential sensor, immobilizer |
| 12 | (15A) Electric seats, lane departure warning system |
| 13 | (5A) Data link connector (DLC), fuse box/relay plate, engine bay 1, rain sensor, sunlight sensor |
| 14 | (15A) Air conditioning (AC), instrument panel, tachometer, supplementary restraint system (SRS), trailer control module |
| 15 | (30A) Central locking |
| 17 | (40A) Heated rear window |
Additional fuse box below the dashboard.
legend.
| F36 | (20A) Audio system |
| F37 | (30A) Spare |
| F38 | (30A) Electric seat, driver’s side |
| F39 | (15A) Heated seats |
| F40 | – |
Fuse box in engine compartment.
fuse box location.
fuse box diagram.
legend.
| 1 | (20A) Engine coolant blower motor control module (low speed), engine management system |
| 2 | (15A) Horn |
| 3 | (10A) Windscreen/rear screen washer pump |
| 4 | (20A) Headlamp washers |
| 5 | (15A) Engine management |
| 6 | (10A) Automatic transmission (AT), engine coolant blower motor control module (high speed) |
| 7 | (10A) ABS control module, power steering |
| 8 | (20A) Multifunction control module 2 |
| 9 | (10A) Multifunction control module 1 |
| 10 | (10A) Engine management |
| 11 | (40A) Heater/air conditioning (AC) |
| 12 | (30A) Windscreen wipers |
| 13 | (40A) Fuse box/relay plate, fascia 1 |
| 14 | (30A) Secondary air injection (AIR) pump |
| MF1 | (50A) Engine coolant blower motor control module |
| MF2 | (30A) Anti-lock brake system (ABS) |
| MF3 | (30A) Anti-lock brake system (ABS) |
| MF4 | (80A) Multifunction control module 1 |
| MF5 | (50A) Multifunction control module 1 |
| MF6 | (50A) Fuse box/relay plate, fascia 2 |
| MF7 | – |
| MF8 | (70A) Power steering |
Additional fuse box in engine compartment.
Fuse MF1 – Heater
Air conditioning
40.0 A
Fuse MF2 – Heater
Air conditioning
40.0 A
Fuse MF3 – Heater
Air conditioning
40.0 A
Fuse MF4 – Not used
80.0 A
