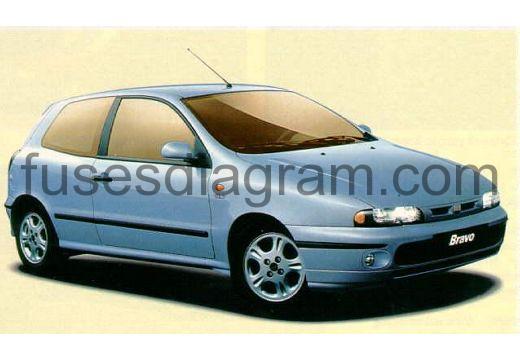

For Fiat Bravo /Brava (182) 1995, 1996, 1997, 1998, 1999, 2000, 2001 model year.
| Cigarette lighter fuse – fuse box in passenger compartment – Fuse F7/20A |
Fuse box in passenger compartment.
fuse box location.
fuse box diagram.
Assignment of the fuses.
| F1 | (20A) Heated rear window, heated mirrors |
| F2 | (10A) Hazard warning lamps |
| F3 | (15A) Reversing lamps, stop lamps, digital clock, indicator lamps instrument panel, mirror adjustment, ABS, airbag, electric windows |
| F4 | (15A) Interior lamps, tailgate lamp, clock, audio unit, glove box lamp, alarm system lamp |
| F5 | (20A) Horn |
| F6 | (20A) Windscreen wipers, rear screen wipers, windscreen washers, headlamp washers |
| F7 | (20A) Heater blower, cigarette lighter |
| F8 | (10A) Headlamp low beam – right, headlamp adjustment |
| F9 | (10A) Side lamp – left, tail lamp – left, licence plate lamp, heater control, heater control lamps |
| F10 | (10A) Side lamp – right, tail lamp – left, licence plate lamp, audio unit illumination, instrument panel lamps, cigarette lighter lamp, switch illumination lamps |
| F11 | (30A) Spare |
| F12 | (10A) Headlamp low beam – left |
| F13 | (10A) Rear fog lamps |
| F14 | (10A) Headlamp high beam – left, headlamp high beam warning lamp |
| F15 | (10A) Headlamp high beam – right |
Fuse box №2 in passenger compartment.
legend.
Fuse 1
Sliding roof
Heated seats
20.0 A
Fuse 2
Windows
30.0 A
Fuse 3
Airbag
5.0 A
Fuse 4
Fog light(s)
20.0 A
Fuse 5
Central locking
20.0 A
Fuse 6
ABS
Or
ESP control unit
7.5 A
Fuse box in engine compartment.
legend.
| F1 | (30A) Fuel injection system |
| F2 | (40A) Ignition switch |
| F3 | (50A) Headlamp alignment (if fitted) |
| F4 | (80A) Fuse box |
| F5 | (40A) Engine coolant blower motor |
| F6 | (50A) AC |
| F7 | (60A) ABS |
