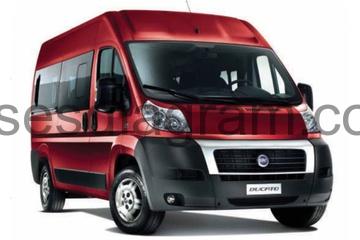

Fuses and Relay Fiat Ducato 2007-2014

For Fiat Ducato (250) 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014 model year.

MENU

Fuse box in passenger compartment.

Additional fuse box on the right B-pillar.

Fuse box under seat (driver’s side).

Additional fuses in engine compartment, near the battery.

Fuse box in engine compartment.

Fuse box in passenger compartment.

fuse ox location.

Dashboard, left-hand side. To gain access, loosen the fastening screws A and remove the cover.

fuse box diagram.

Assignment of the fuses.

Fuse 1
Headlight levelling
Left dipped beam
7.5 A
Fuse 2
Power steering control unit
Brake pedal switch
Reversing light
Water sensor, diesel
7.5 A
Fuse 3
Parking distance sensor
Driver’s power window
Rear-view camera system
Rain/dusk sensor
Radio
7.5 A
Fuse 4
Right power windows
30.0 A
Fuse 5
Not used
Fuse 6
Right dipped beam
10.0 A
Fuse 7
ABS/ESP control unit
Steering angle sensor
Brake light switch
Yaw rate sensor
7.5 A
Fuse 8
Brake light switch
10.0 A
Fuse 9
Rear 12V socket
15.0 A
Fuse 10
Not used
25.0 A
Fuse 11
Cruise control
Body control unit
Air conditioning
Tachograph
7.5 A
Fuse 12
Airbag
7.5 A
Fuse 13
Not used
Fuse 14
Left power windows
30.0 A
Fuse 15
Front passenger’s door control unit
Driver’s door control unit
7.5 A
Fuse 16
12V socket
Cigarette lighter
20.0 A
Fuse 17
Heated electric mirrors
Heated rear windscreen
15.0 A
Fuse 18
Rear windscreen washer
Windscreen wiper(s)
30.0 A
Fuse 19
Heated electric mirrors
Heated rear windscreen
15.0 A
Fuse 20
Key discharge relay
7.5 A
Fuse 21
Relays in fuse and relay box in engine compartment
Body control unit
7.5 A
Fuse 22
Rear fog lights
Instrument panel
7.5 A
Fuse 23
Body control unit
10.0 A
Fuse 24
Radio
Alarm
Diagnostic socket
Air conditioning
Tachograph
10.0 A
Fuse 25
Door lock
20.0 A
Relay R1
Key discharge relay
Relay R3
Key discharge relay
Relay R2
Heated rear windscreen relay
Relay R4
Main beam relay

Additional fuse box on the right B-pillar (if equipped).

fuse box location.

fuse box diagram (type A).

legend.
